STAGE.II Data Control Package
Our Stage.II is designed for people who already have a standard GEN.1 Banks iDash Supergauge, or GEN.2 iDASH PRO and are seeking the additional (8) PID's it provides as well as the data-logging features that only the iDASH DATA PRO provides. We add to that some of the additional sensors needed to keep track of the efficiency that your LT4’s supercharger cooling system is providing.

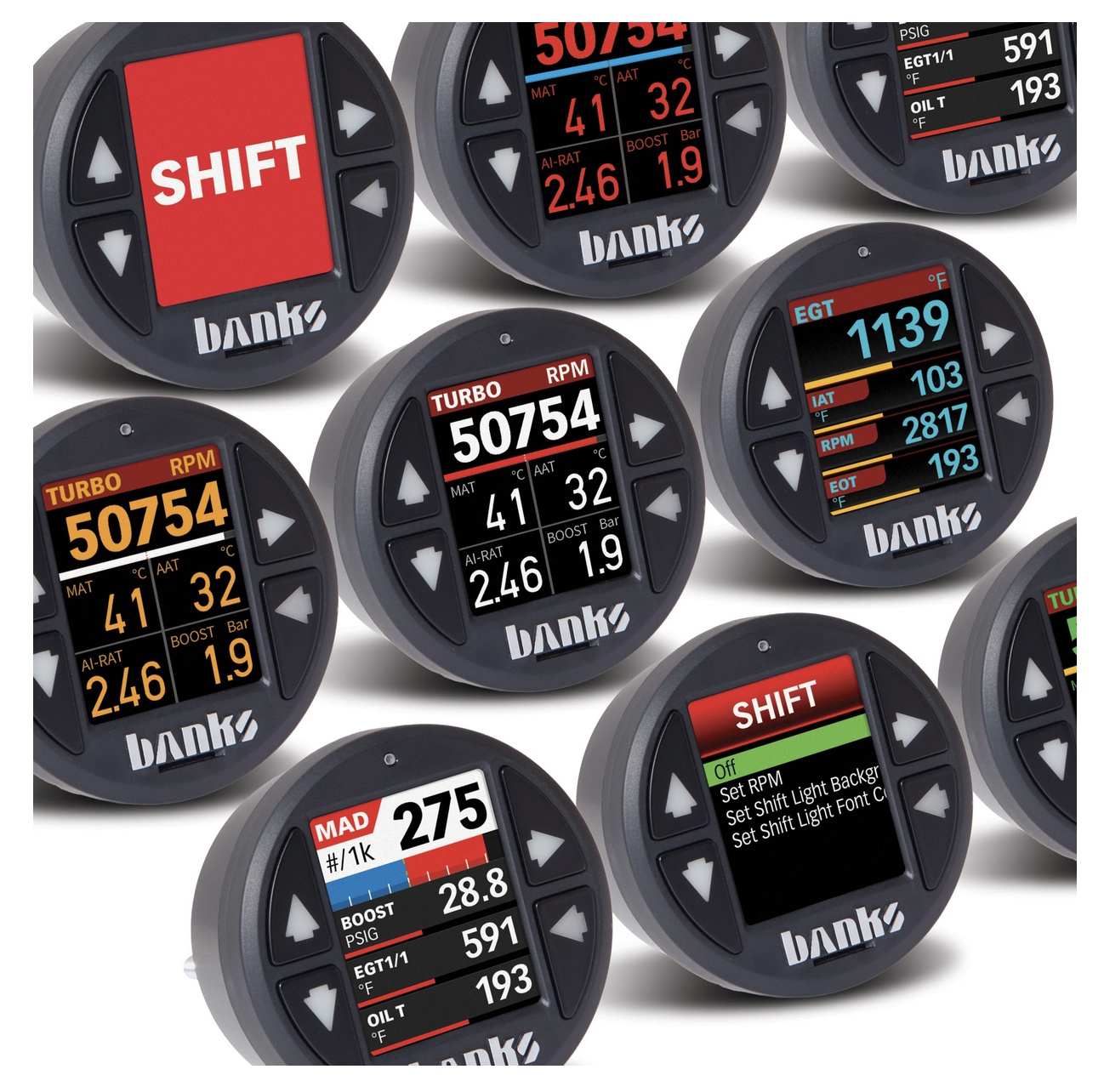

If this is your first time seeing the Banks iDash Digital Gauges, you are in for a real treat! Not just because this is the GEN.2 PRO design with a TON more features, but because even before that, this was and will now continue to be the most versatile Digital gauge on the market!

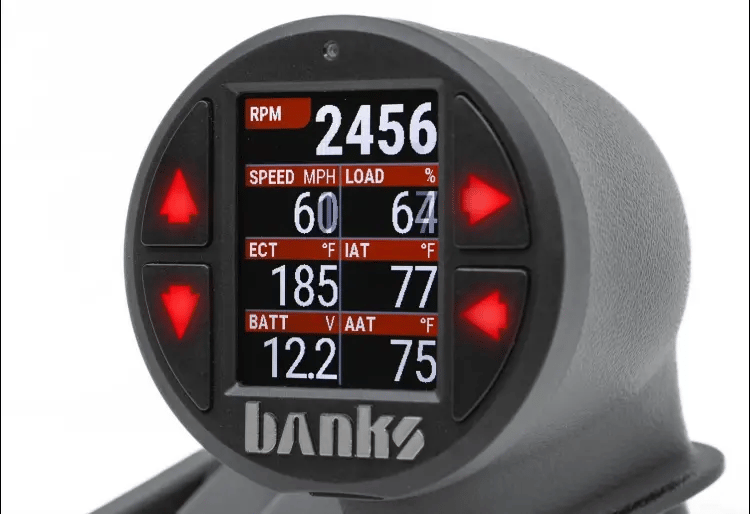

Banks iDash PRO DATA is not only the smallest, and most powerful plug-n-play OBD-II monitor and control interface on the market, it is easily the BEST LOOKING. With its easy to read 2- to 8-gauge user-selectable LCD display, the iDash Data Monster reads a multitude of engine parameters and internal data directly from the vehicle's ECM via OBD-II. Custom color selections help it blend in with the 6th Gen Camaro Cluster, for am OEM look and feel. It also opens a whole new world of Banks' exclusive calculated parameters not available on any other device. One great feature is the “low and high” alerts for any engine parameter. Great for low oil pressure, or temp, shift lights, IAT’s and more! Monitor max and min values for a user-selectable list of parameters. Read and clear trouble codes on-the-fly. Customize the navigation button and LCD display colors, brightness, and even the rate at which they dim at night. Daisy chain 4 iDash gauges and view up to 32 parameters simultaneously. Add Banks sensor modules direct into the back of the iDash PRO (no longer need the 4-channel analog module) in order to add 4-channel thermocouple module, Wideband 02 sensor, liquid and air temp sensors, and AirMouse Ambient Air Density Module for nearly infinite vehicle and weather analysis. The real benefit to the PRO DATA is the real time data logging capability. This feature is great for data-logging on the fly. All it takes is a three second hold of a button and you are not logging ALL of the ECM’s PID’s shown below to the provided SD card and directly to the Banks APP. These data logs can be easily viewed and shared later using Banks free online software. This is great for the last minute decision to data when racing, hill climbing and more.
Let’s face it, we expect a lot from our cars, and spend a lot of time trying to squeeze every last HP from them. You deserve to have the very best data, delivered in the very best set of high performance gauge’s on the market.
KEY FEATURES
Customizable LED gauge display with Auto-Dimming Feature.
Avoid costly repairs by monitoring important sensors in real time.
Read Boost Pressure, IAT’s, Oil Temp & Pressure and more!
Easy to expand with additional gauges for even more data.
Displays accurate values your OEM dash gauges filter.
Includes patented OBDII Density (exclusive to Banks).

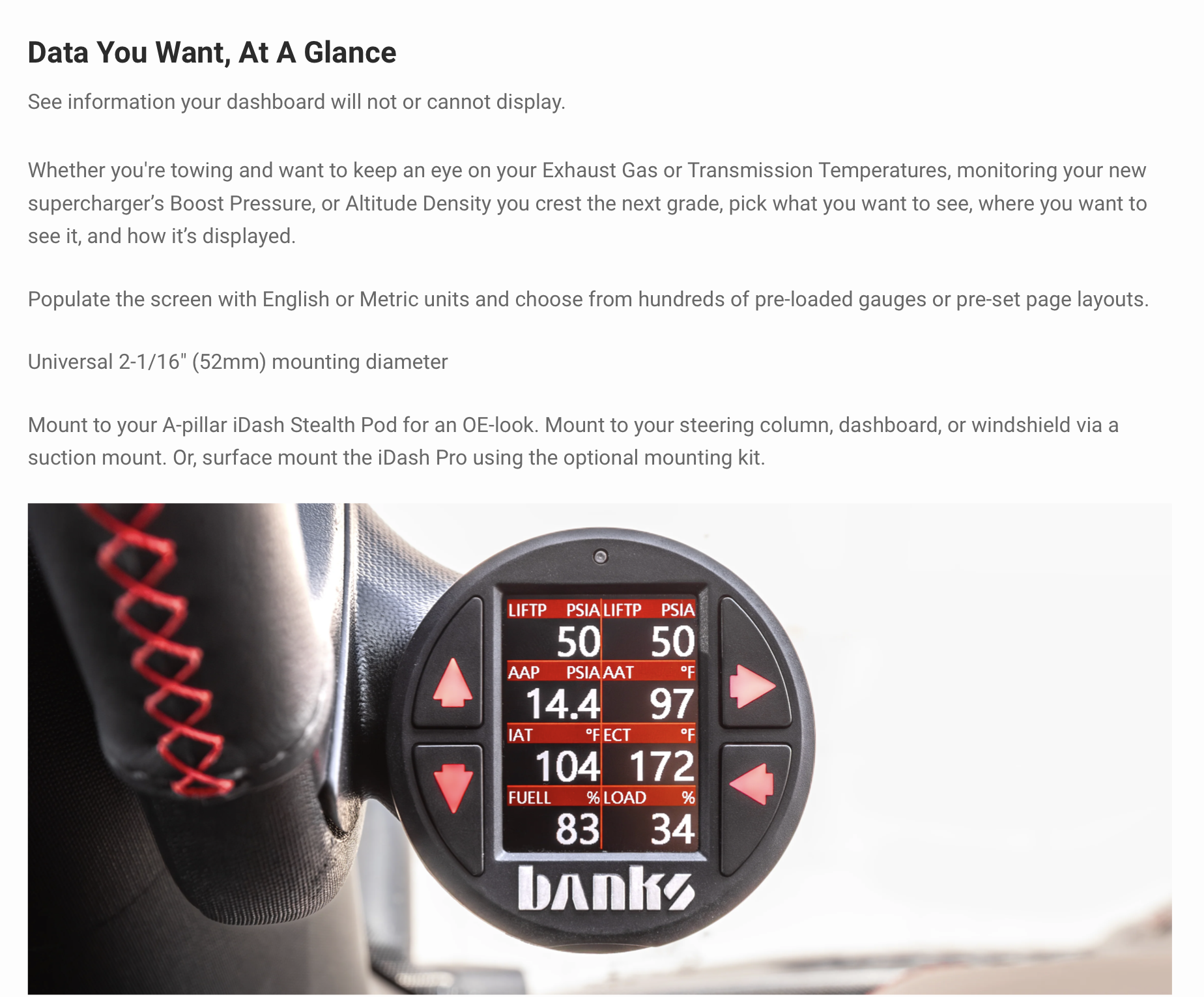

Fits standard 52mm (2-1/16 inch) gauge mounts
View Critical Data your dash does not display.
Display 2-8 Data readings per gauge.
Read up to 80 OBDII Mode 01 values.
Bluetooth app for setup and control.
Free over-the-air firmware updates.
Over 300 parameters available.
Log up to 20 min/max values.
Being the LT4 purists that we are, we are focused on getting the most out of our 1.7L blower. Although she might be little, we know many of you are already passed the 950rwhp level and climbing! With the rising boost and blower speeds comes the dreaded heat, and increased IAT’s.
Still hungry for more? Then check out our Stage III kit that includes an additional iDash PRO as well as an additional temp & pressure sensor allowing you to check your coolant temps & pressure before and after coolant enters the supercharger giving you maximum insight into the cooling effectiveness of your cooling system, and the burden placed on your pump based on your specific HX cooling system design.
Whats in the box;
(1) Banks iDash PRO DATA gauge + App Control #66713
(1) Banks 0-300F Fluid Temp Sensor w/ 1/8” NPT threads
(1) Banks 4 Channel Splitter #66544
(1) Banks 0-100psi Pressure Sensor
(1) Banks Starter Kit #66556
(2) 36" 3-Pin Extensions
What you should plan on providing;

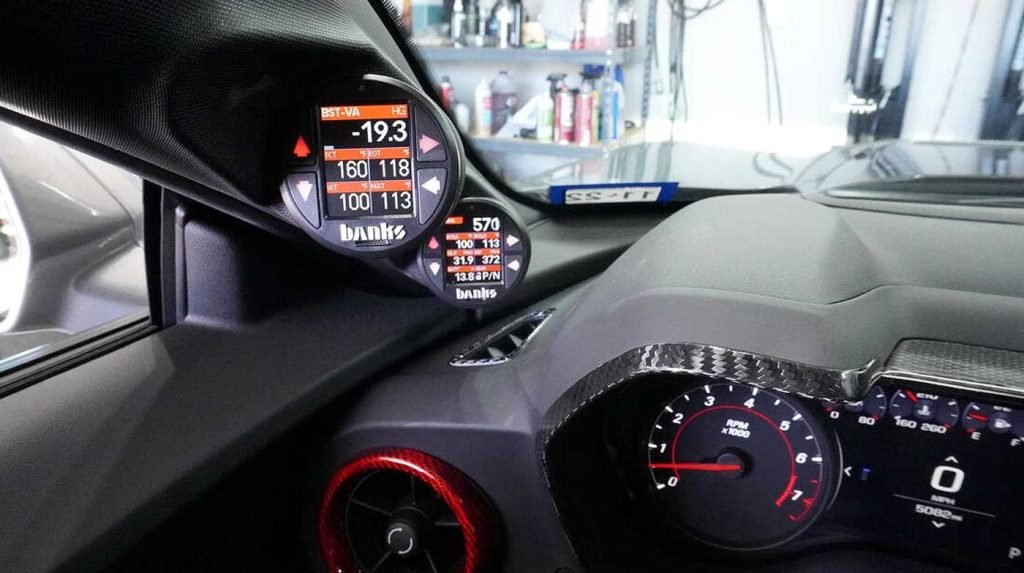

Gauge Mounts or Clusters. (We prefer the ZZP dual a-pillar cluster and now offer it in our store for faster shipping)
Hose fitting with sensors. (We decided not to carry as so many people have custom hose set-ups)
